STUD & TRACK
ROLLFORMING LINES
.jpg)
ASC Machine Tools is proud to present the following custom designed Stud and Track Roll Forming Lines:
- Light Gauge Interior Stud and Track Lines
- Structural Steel Framing Lines
- Custom Accessory Lines
ASC Stud and Track Roll Former employs a precision flying shear to produce close tolerance parts on various widths and gauges of materials.
​
The Structural Steel Framing roll forming line have the ability to change profile dimensions in minutes without the requirement for tooling or spacer changes.
​
All of the Accessory Lines are custom designed and offer a variety of options for your specific application..
​
PICTURE GALLERY - STUD & TRACK LINES
Light Gauge Stud & Track Roll Forming Line
Light Gauge Stud & Track Rollforming Line
Light Gauge Stud & Track Roll Forming Line
Light Gauge Stud & Track Roll Forming Line
Light Gauge Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
for Stud & Track
ASC STUD & TRACK
Structural Stud & Track
Structural Stud & Track
Structural Stud & Track
Structural Stud & Track
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge & Structural Steel Stud & Track Roll Forming Line
Light Gauge Stud & Track:
• Material thickness: 20 to 26 Gauge

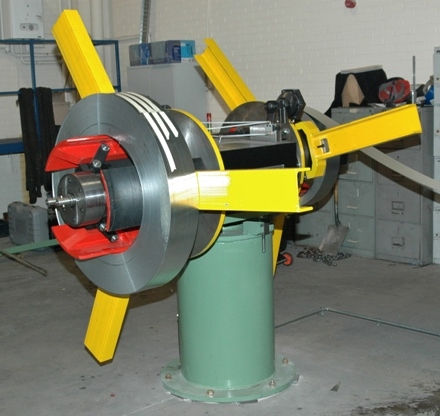

• Single or Double Arm Uncoiler with optional Coil Car
• Optional Vertical Uncoiler
• Web size: 1-5/8" to 6"
• Flange/Leg height (Stud): 1-1/4 to 2-1/2"
• Flange /Leg height (Track): 1-1/4 to 2-1/2"
• Lip dimension: 1/4 to 1/2"
Smaller and larger part sizes can be added upon request
• Roll former Line Speed: 100 to 300 FPM
• High precision Roller Die Tooling designed inhouse
• Automatic or Manual Width Adjustment
• Optional Auto-Gauge adjustment
• Post-punched hole sizes to suit customer specifications
• Cut off with inserts for different sizes and profiles
• Inkjet part marking
• Indented screw or rivet holes plus available upon request
Structural Stud & Track:
• Material thickness: 12 to 20 Gauge
• Single or Double Arm Uncoiler with optional Coil Car
• Web size: 3-5/8" to 14"
• Flange/Leg height (Stud): 1-5/8 to 3"
• Lip dimension: 1/4 to 1"
Smaller and larger part sizes can be added upon request
• Roll former Line Speed: 80 to 100 FPM
• High precision Roller Die Tooling designed inhouse
• Automatic or Manual Width Adjustment
• Optional Auto-Gauge adjustment
• Pre-punched hole sizes to suit customer specifications
• Optional Post-Cut Shear with inserts for different sizes on lighter gauges available
• Inkjet part marking
Custom Accessory Lines:
All of our accessory lines are custom designed and have a variety of options available to suit your application.
Rollforming line features are:
• Single or Double Arm Uncoiler with optional Coil Car
• Material thickness: 30 to 16 Gauge
• Roll former Line Speed: 100 to 300 FPM depending on application
• High precision Roller Die Tooling designed inhouse
• Pre-punched hole sizes to suit customer specifications
• Cut off with inserts for different sizes and profiles
• Inkjet part marking
The most common accessories profiles are:
• Corner bead
• Angle profile
• Furring channel
• Z- Channel
• Stabilizer (U-Channel)
• Resilient Channel
• J-Trim (J-Channel)
Other custom profiles available on request
If you have any questions or need more detailed information please contact us.
